Copper clad aluminum plate specification: 500 mm x 600 mm 600 mm x 1000 mm 500 mm x 1200 mm
Copper clad aluminum plate thickness: 1.00 mm to 4.00 mm thickness copper foil 35 um 70 um 105 um 140 um

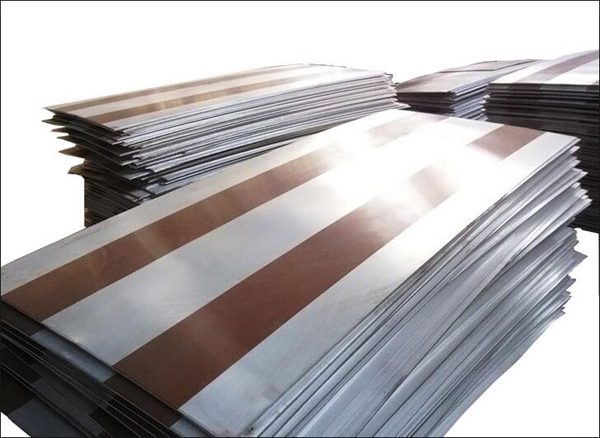

Copper clad aluminum plate consists of Copper sheet cladding on Pure aluminum sheet(base metal), Both metals being diffused together to form an inseparable whole by roll bonding process. Copper clad aluminum, Is therefore not and alloy and copper layers are not electric plating but are rather mechanically welded aluminum sheets. Copper clad aluminum plate has been successfully evaluated and used by many of the world’s leading electrical equipment manufacturers.
Product features:
1：Machine adopts high quality, high purity large enterprise aluminum plate material, aluminum purity meet more than 97% of the standard. Give full play to the aluminum radiator high performance.
2：By anodic oxidation process surface, thickness in more than 10 um, surface silvery white light.
3：The oxide layer thickness and density and even the layer thickness ensure that materials have good electrical insulation.
4：The hardness of surface to ensure circuit board molding burr easy control. Mechanical processing high efficiency.
5：Level 1 glass fiber cloth and uniformity of vertical on glue process ensure plank dimension stability, level off, without warping
6：Copper foil actual thickness fully meet the national standard.
Copper clad aluminum bimetallic plate/sheet applications:
1.Substation & Switchyard Bimetallic clamp and connectors 2.Bimetallic clamp and connectors 3.Cable lugs and cable end connectors 4.bus ducts and bus bar chambers 5.Isolators and switchgear 6.Oil & Vacuum Circuit Breakers 7.Overhead connectors 8.Flexible connectors
